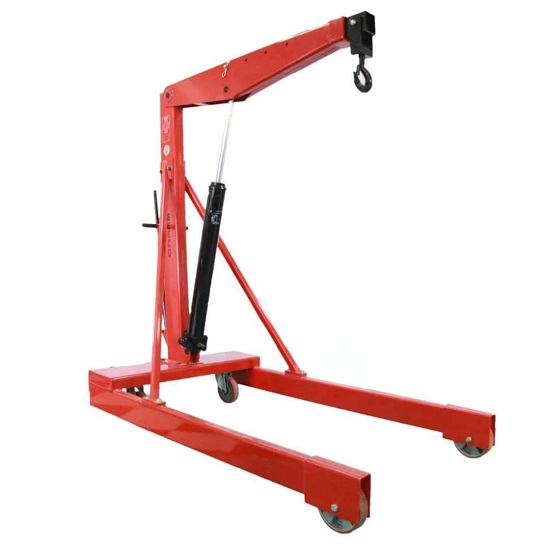

BEECO Workshop Cranes is designed and manufactured to facilitate the handling of heavy loads in warehouses and production facilities. The Workshop Crane can be customized to the clients specifications as they are designed and manufactured at our factory at10th of Ramadan city in Egypt.
BEECO Workshop Cranes has a sturdy profile manufactured from rigid steel which enables it to lift a load of up to 3 Tons.
BEECO Workshop Cranes have four installation points that are adjustable according to the load.
BEECO Workshop Cranes has double pump effect to increase the lift speed of the load.
BEECO Workshop Cranes has 4 wheels 2 of which have the ability to rotate around the Z axis for load movement within the facility.
BEECO Workshop Cranes maintenance and services can be done on the ground via BEECO’s mobile support units.
| Dimensions | unit | 1 ton | 2 ton | 3 ton |
| Max height | mm | 2868 | 3280 | 3580 |
| Min. Lifting Height | mm | 643 | 510 | 800 |
| Max. Chassis width | mm | 960 | 1110 | 1410 |
| Chassis length | mm | 1550 | 1930 | 2635 |
| Chassis height | mm | 150 | 240 | 260 |
| Distance between Legs | mm | 840 | 960 | 1190 |
| Gross weight | kg | 120 | 230 | 440 |
BEECO Manual Stackers has controlled lower speed for load safety
