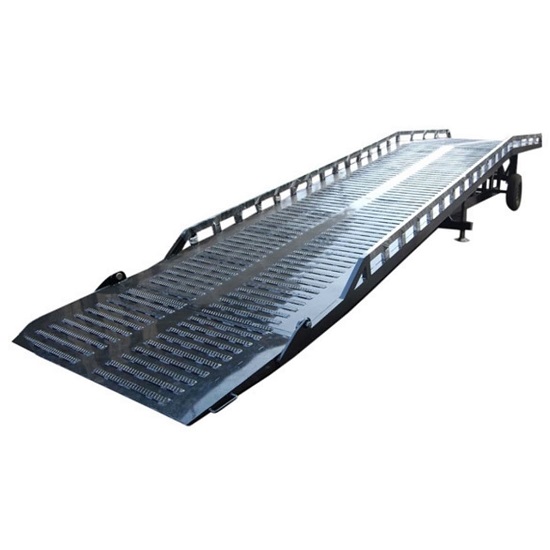

BEECO Loading Ramp is designed and manufactured to elevate terrains for loading and unloading if you do not have a fixed concrete dock. The Loading Ramp is built to order and customized to the clients specifications as they are designed and manufactured at our factory.
BEECO Loading Ramp is equipped with adjustable lip which is used as a bridge to facilitate the movement of the handling equipment between dock and truck.
BEECO Loading Ramps increase ROI as it saves time and money by allowing material handling equipment to easily load and unload goods from containers without getting the load on the ground using cranes.
BEECO Loading Ramps are mobile and can be transported to the location it is needed thanks to the steering system.
| DIMENSIONS | Unit | 6 ton | 8 ton | 10 ton |
| Maximum Ramp Height | (mm) | 1800 | 1800 | 1800 |
| Minimum Ramp Height | (mm) | 1400 | 1400 | 1400 |
| Tyre Diamter | (mm) | 814 | 814 | 814 |
| Horizontal length | (mm) | 3000 | 3000 | 3000 |
| Inclined length | (mm) | 9000 | 9000 | 9000 |
| Lip length | (mm) | 400 | 400 | 400 |
| Guardrail Height | (mm) | 200 | 200 | 200 |
| Ramp Width | (mm) | 2500 | 2500 | 2500 |
| Lip Width | (mm) | 2200 | 2200 | 2200 |
BEECO Loading Ramp has safety side rails to protect handling equipment.
BEECO Scissor Lift is equipped with manual/hydraulic outriggers that enables the operator to stabilize the loading ramp in uneven terrains.
